Sonar Parts and Lines

Sonar Logo

Don't risk using that frayed line or bent strap any longer. We've got the parts and lines to keep your boat in tip-top shape.

Please call us to place an order. The phone numbers are listed at the bottom of the page. Prices subject to change without notice.



Sonar
Sonar
Sonar
Click on any image to view a larger version.

Line Specifications

Running Rigging Line Diameter x Length
Backstay 1/4" X 30'
Backstay Preventer 3/16" X 6'
Boom Vang 1/4" X 15'
Cunningham 1/4" X 8'
Cunningham 3/16" X 9' + Spectra
Down Haul/Foreguy 1/4" X 18'
Jib Halyard 1/4" X 70'
Jib Halyard Tension 3/16" X 25'
Jib Sheets (1) 5/16" X 31'
Main Halyard All Rope 5/16" X 68' 9.5"
Main Sheet 3/8" X 55'
Mast Block adj. 1/4" X 17'
Spinnaker Halyard 1/4" X 68'
Spinnaker Sheets-Tapered (2) 5/16" X 45'
Topping Lift 1/4" X 38'
Traveler 1/4" X 25'
Tweekers (2) 1/4" X 12'

Sonar Parts

Photo Item Description Part # Price (US $)
Running Rigging
Cunningham 615010 $1.50
Downhaul/Foreguy 615173 60.00
Jib Halyard (1/4" x 70') 615172 187.00
Jib Sheets (continuous) 615016 40.00
Main Halyard (Hi-tech low stretch) 615169 210.49
Main Sheet 615020 60.00
Spin Halyard (1/4" x 58') 615171 153.00

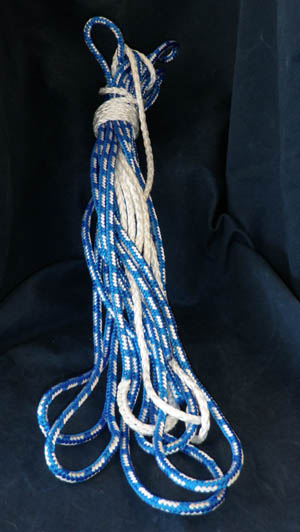

Spinnaker Sheets - Tapered (each) 615174 87.95
Topping Lift (1/4" x 38') 615175 74.00
Tweekers (each) 615011 7.50
Standing Rigging
Backstay 615163 86.00
Handy Lock Jaw for TB CSJ33.603 21.75
Forestay/Headstay 615162 139.95
Shrouds - Lower (each) 615161 222.95
Shrouds - Upper (each) 615160 222.95
Turnbuckle HL Upper/Lower CSJ01 115 152.95
Turnbuckle 5/32" Open Body CSJ42.115 53.49
Mast
U Tack Bracket 615125 30.00

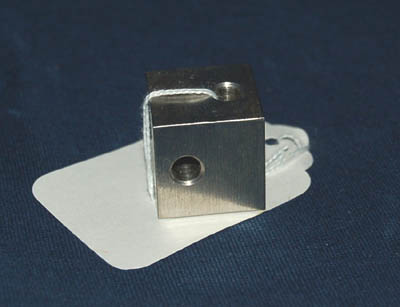

Goose Neck Block - Solid 615090 30.00

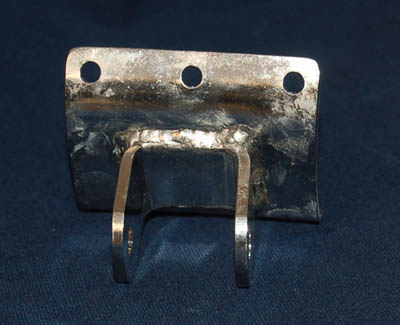

Goose Neck Bracket 1" 615091 58.00

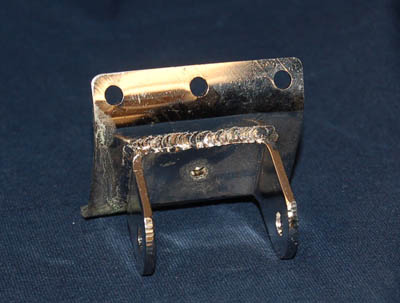

Goose Neck Bracket 1 1/2" 615092 62.95
  Main Halyard Sheave Bushing only (sold with 615015 sheave) 615013 7.50
Main Halyard Sheave (sold with 615013 bushing) 615015 36.95
Mast Complete 615001 6,147.00

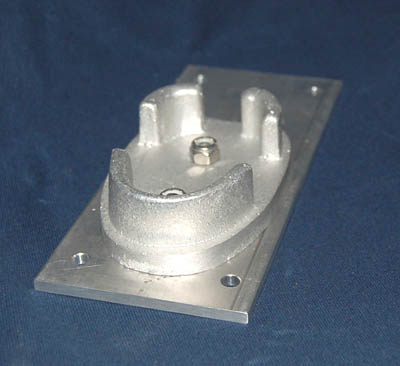

Mast Step w/ Alum Plate 615102 82.95

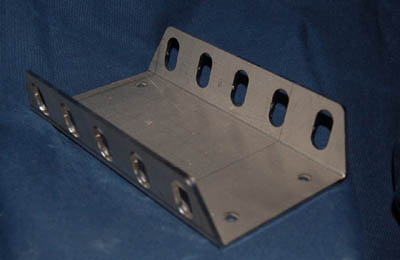

Mast Step S.S. Block Plate 615291 129.00

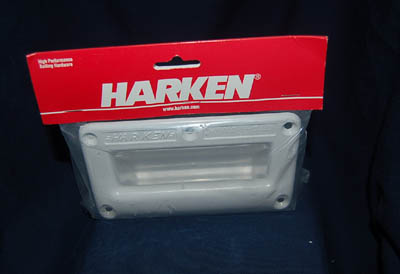

Plastic Hand Holds HAR-062 19.99

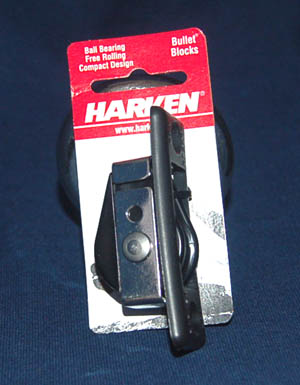

Pole Topping Lift Exit HAR 088 24.95

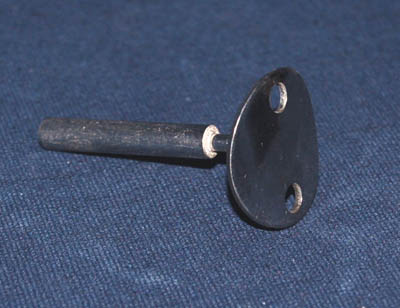

Sheave Pin 615025 29.95

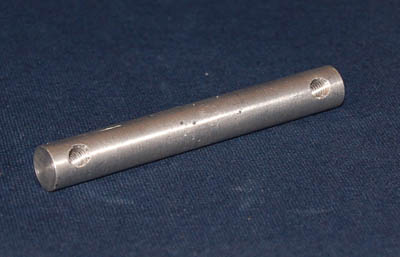

Slug for Main Halyard 615003 9.95

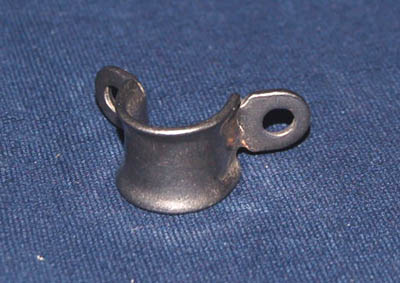

Spin. Halyard Fairlead - Small 615002 12.00
Spin Exit Block HAR 088 24.95

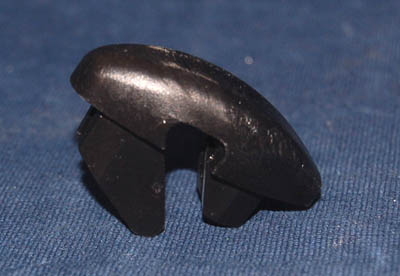

Spreader End Caps 610060 18.95
Spreader Bar 615065 84.95

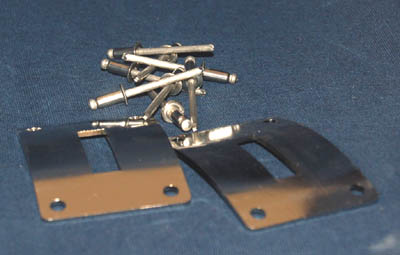

Spreader Plate Dbl Kit 615061 58.95

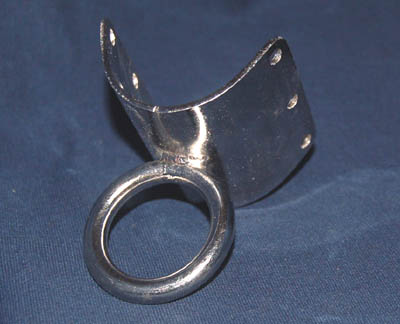

Spin Pole Ring 615085 64.95

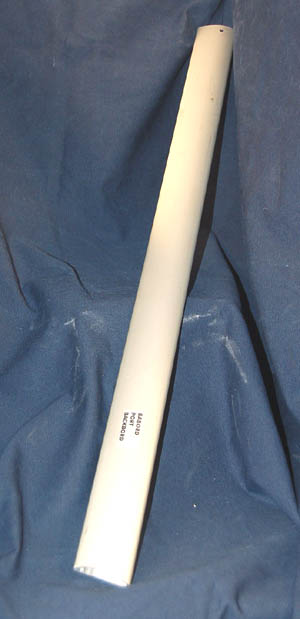

Spreader Port FS653P 94.95

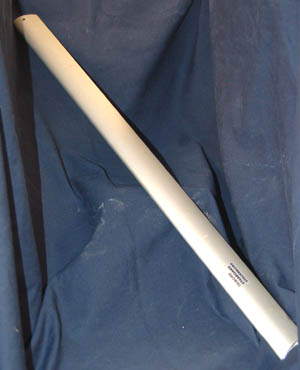

Spreader Starboard FS653S 94.95

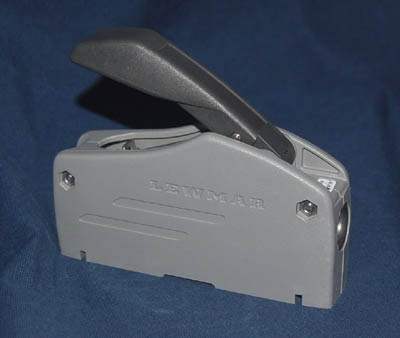

Superlock Lewmar D1 LEW 29101108 100.95
T-Ball Plugs 742-5 7.95
Traveler Track HAR 2721.1.2M 69.95
Traveler Car HAR 2735 197.95

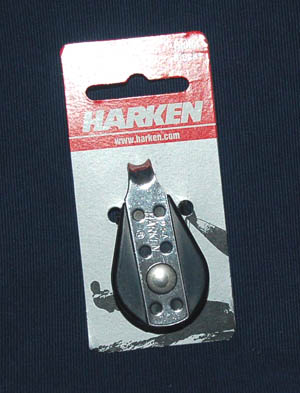

Turning Block HAR 082 17.95

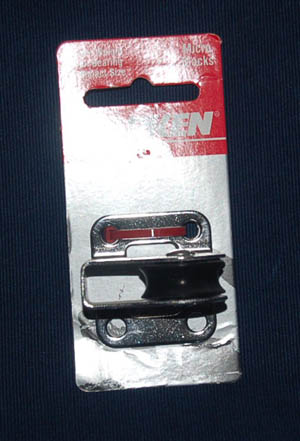

Upright Bullet Block HAR 108 25.95

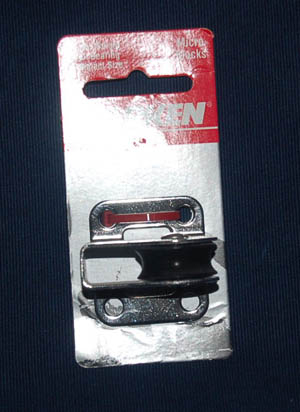

Up Right Block HAR 243 17.90
Boom
Block HAR 082 17.95
Entire Boom Complete 615120 1890.00
Boom Extrusion Only 615121 1200.00

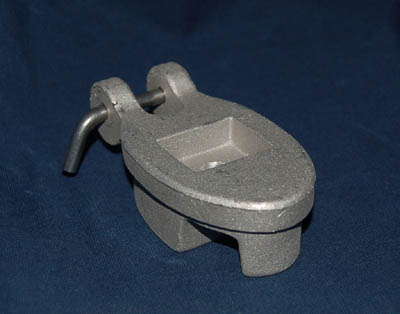

Forward Boom End (in board) 615126 74.75
Bail SN Welded #4750 47501318172 25.00
SN Boom Doubler 615062 190.00
Vang Parts

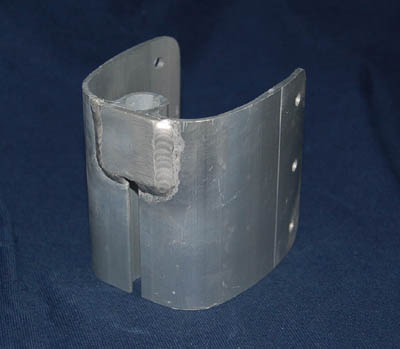

Bracket (for Vang Tube) 615101 K11364 59.95

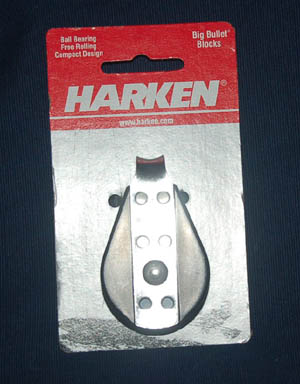

Bullet Block HAR 125 28.95
Vang Pennant - coated 615260 15.00

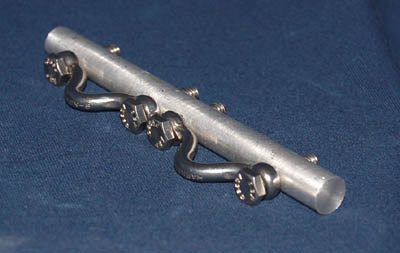

Vang Strap Slug - Double 615098 42.95
Trailer Parts

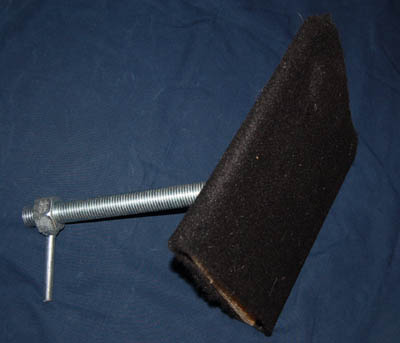

Poppets for M.C. Trailer 615075 135.00
Poppet nut 615076 6.95
Dolly Wheel for Trailer - 1 3/4" shaft-silver-side crank 6605 29.95

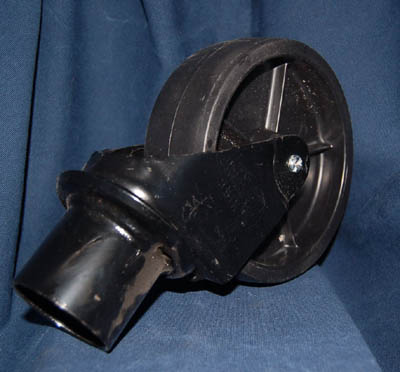

Dolly Wheel for Trailer - 2" shaft-black-top crank A80551 34.95
Canvas Options - standard colors: red, white, blue
Mast Bag for Trailering (white vinyl) 615045 175.00
Mainsail Cover - acrylic 615030 335.00
Tiller Cover - acrylic 615035 55.00
Miscellaneous Parts

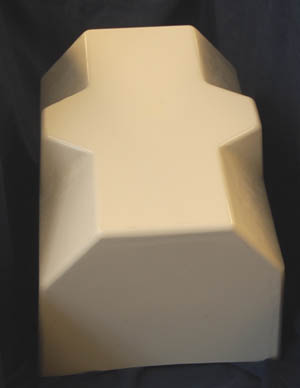

Barney Post 615007 225.00

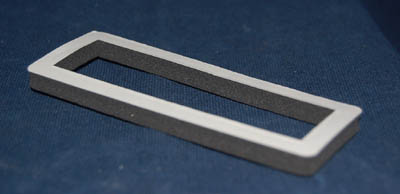

Bailer Gasket 390952 14.95
Bailer with Gasket 390173 134.95

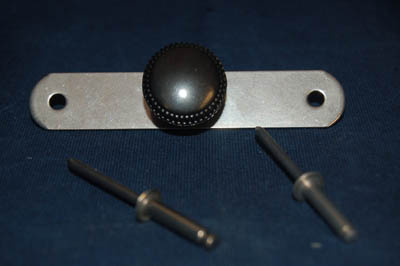

Bilge Cover T-Bolt Retro Fit Kit 610159 29.95
Sonar Chain Plate 615019 50.00
Sonar Chain Plate Cover 615122 14.95

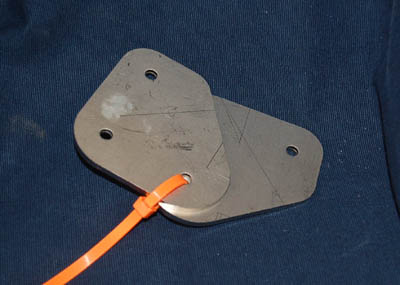

Clam Cleat Plate S.S. (pair, for jib sheet) 615551 39.95
Cam Cleat - Harken HAR150 48.95
Companionway Hatch Board - Acrylic 615221 175.00
Companionway Hatch Board - 1/2 615222 29.95

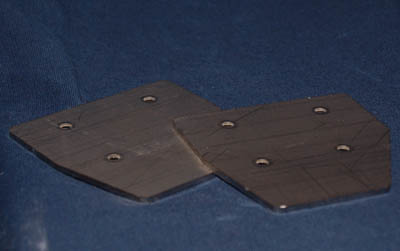

Dash Board Cleat Plate S.S. (pair, new boats) 615552 44.95
  Dash Board Cleat Plate - Plastic (pair) 615557 39.95
  Dash Board 1/2 Plastic (pair) 615449 24.95

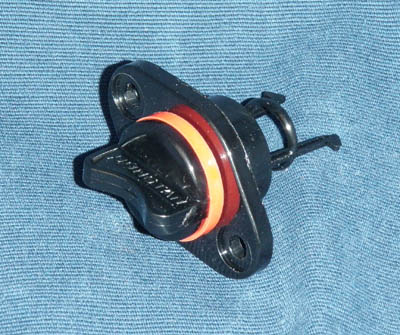

Drain Plug RF294 12.95

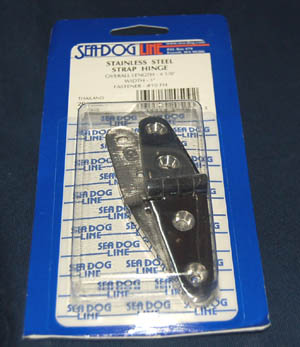

Hinge-Aft Seat Locker SDG205390-1 14.95

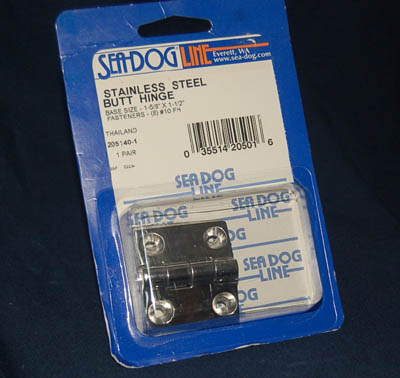

Hinge-Front Seat Locker SDG205140-1 13.95

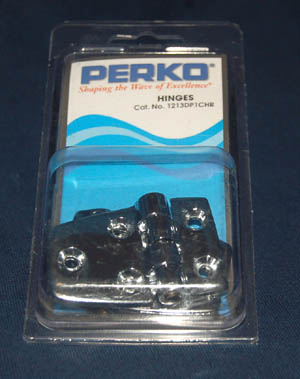

Hinge for Seat & Lazarette (for #400 and higher, 3 holes) PKO1213 DPICHR 30.49

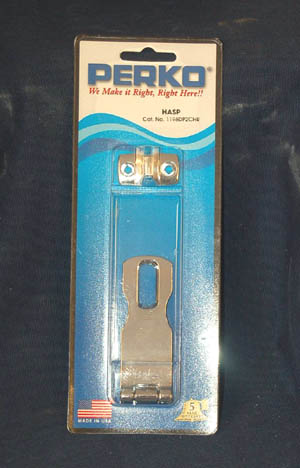

Hasp for Seat & Lazarette (for #400 and higher) PKO1198-DP2-CHR 19.50

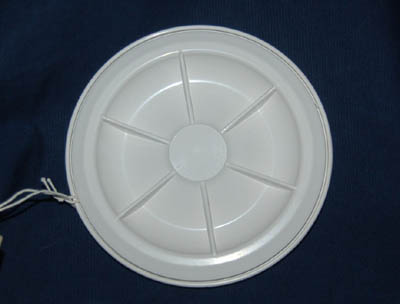

Inspection Ports RONRF530W 23.95
  Jib Turning Block (Ratchmatic) HAR2682 144.95

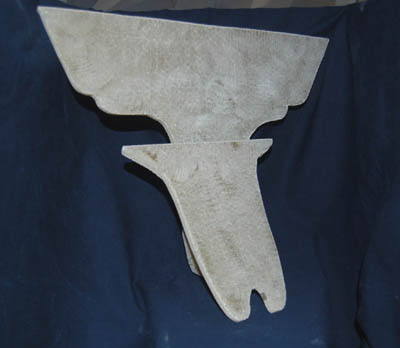

Keel Stiffners (pair) 615014 94.95

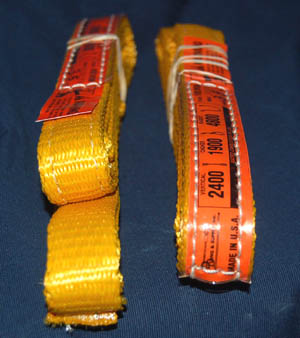

Lifting Bridle - Pair EE2.91X36 75.00

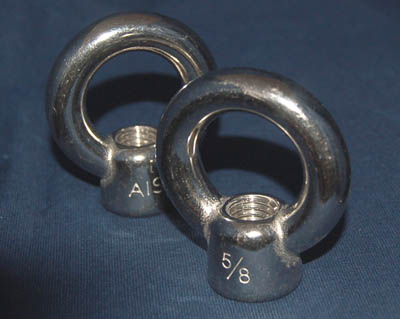

Lifting Ring - S.S. 5/8" 3061T21 49.55

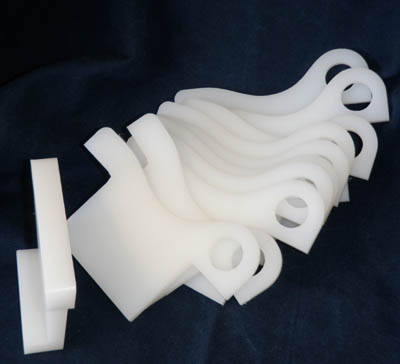

Mast Blocks (11 pieces) 615255 60.00

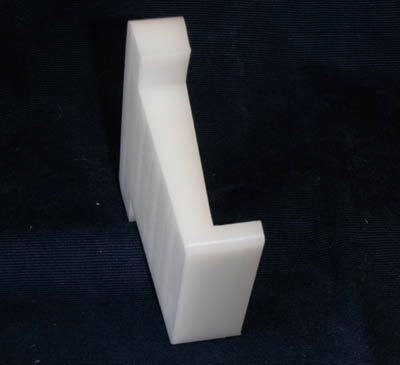

Mast Block - Forward Piece 615027 24.95

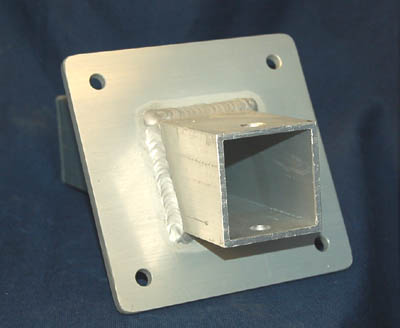

Motor Bracket Female End 615281 115.00

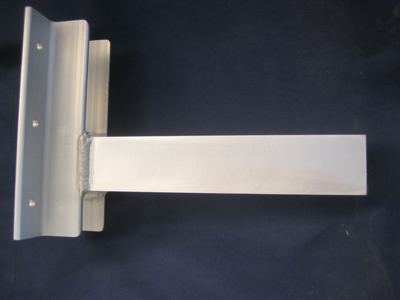

Motor Bracket Male End 615280 115.00

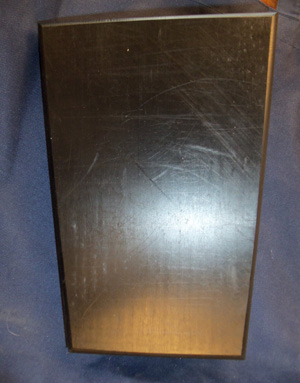

Motor Bracket Plastic Only 615285 85.00
Mylar rudder piece 610206 1.00
Rudder 615310 1385.00

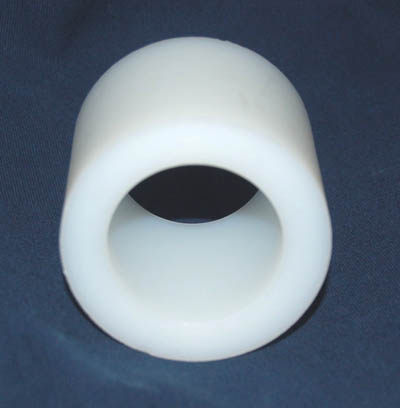

Rudder Bearing - Large (hulls #522 and up) 615301 29.95

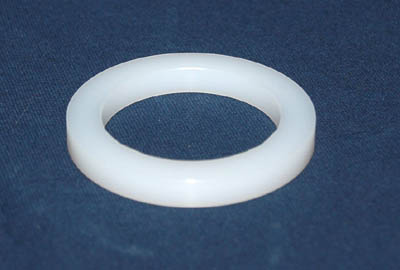

Rudder Bushing 1/4" 615300 18.95

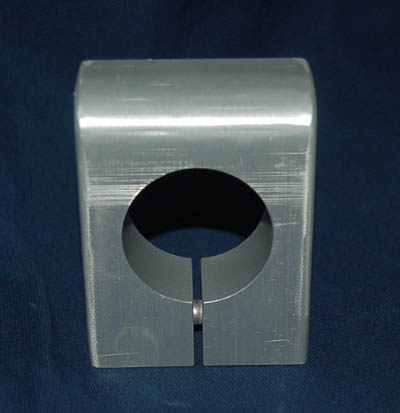

Rudder Head with Bolts 615295 140.00
Rudder Pin 615305 11.00

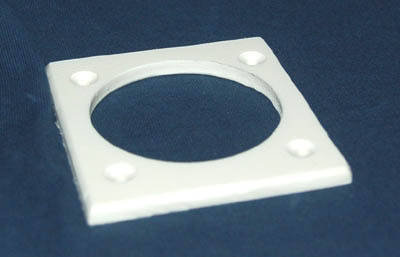

Rudder Tube - Plate Cover 615299 21.95
Sn H-frame (spider) 615006 395.00
Spinnaker Pole End - Metal 534-853-01 85.00
Spinnaker Pole Holder 615251 125.00
Spinnaker Pole Forward Boom Plate 615253 49.95
Spin Pole - Tapered 615250 550.00
Spin Pole - Tube Only SK-2871 350.00
Stem Head Fitting 615553 65.00

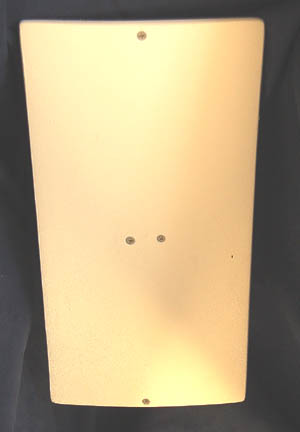

Bilge/Sump Cover 615325 200.00

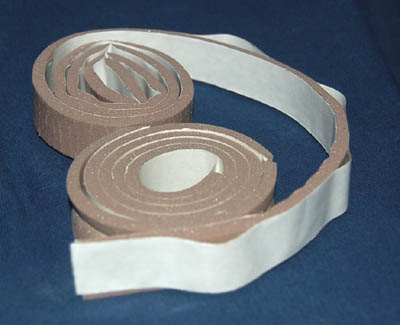

Sump Cover Replacement Gasket 610186 4.95

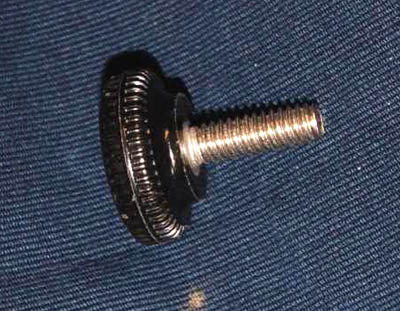

Sump Cover Screw (Black) 1373T57 9.95

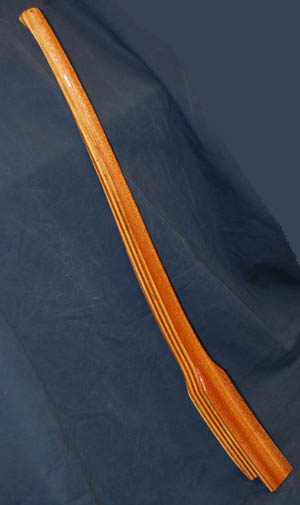

Tiller 615240 241.50

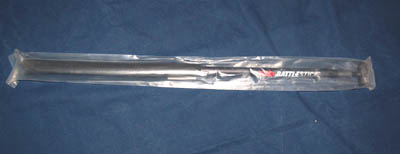

Tiller Extension RONRF3131 118.95

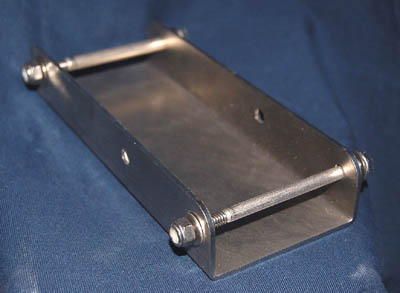

Tiller Head S/S w/ Bolts 615245 92.50

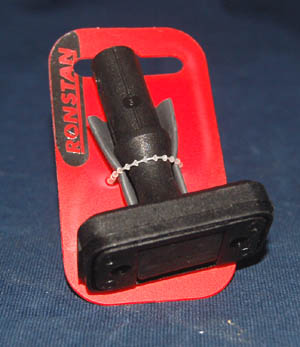

Tiller Joint - Rubber RON3133 17.95
Toe Rail (Each) Silver 615315 370.00
Toe Rail (Each) Black 615320 370.00
Whisker Pole 615252 300.00
